Introduction to NetBean
Getting Started

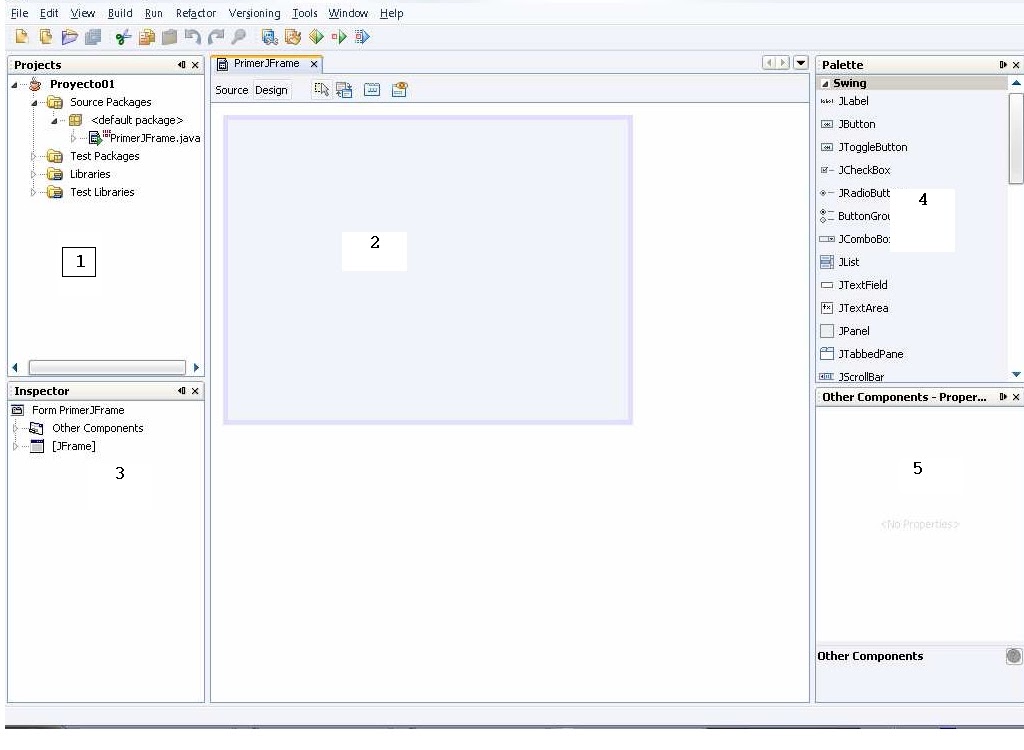

Following is the part of the IDE enviroment that you need to knowPart 1 - Projects
As we see, the project name appears in the upper and bold, tothe branches from the tree of sub folders, which grouped the codes
source classes along with their respective links to their graphical interfaces (in
if they have any), used bookstores, and some others that the level of this tutorial,
yet are not important.In the first one (Source Package) is basically everything we develop,from simpler kinds of code just to complex GUIs A right click on this folder source henceforth allow the creation new classes, either graphic or not.
Part 2 - Form
This is the area that will display all the work we do in the design processour interface. In the upper part of it, is a flange which indicates the name of the class and a small graphical X to close the classes no need.In the button bar located in this area are:
Source:
Activates the editing of code, which can be accessed directlythe java programming language pure and will allow code insertion
non personalized automatically generated by netbeans.
Design:
Enables graphic design view of the form (this option is active
default)
Selection Mode:
This is the tool that allows you to select and manipulate
objects.
Test Form:
A preview of the GUI.
Part 3 - Inspector:
This zone operates as a tree, the browser isobjects in our GUI, meaning that there is a list
hierarchy of all components placed on the form, and from there
control the order of these, their names and the right click on each
object, you can modify the properties that each possesses.
Part 4 - Palette
Here is the graphical components with Swing and AWT libraries of
Java. Just click on the desired object and then click on the workspace
the interface will be designing and adding components.
Zone 5 - Properties
Perhaps this is the most important area of the graphical programming environment of this IDE. It contains special properties and attributes that each graphical component. In any component interface, from external and Swear to the simplest as a JSeparator has certain properties and behavior to events that allow high design customization objects placed in the work area
